Spring Security自定义登录页面

Spring Security提供了内置的登录模块，用于验证用户凭据并提供对应用程序的访问权限。

该模块渲染的登录页面是内置的。但是，如果我们想自定义登录页面，该怎么办呢？

答案是，我们可以创建自己的JSP登录页面，并将其集成到应用程序中。在本主题中，我们将创建一个自定义的登录页面，并使用它进行登录。

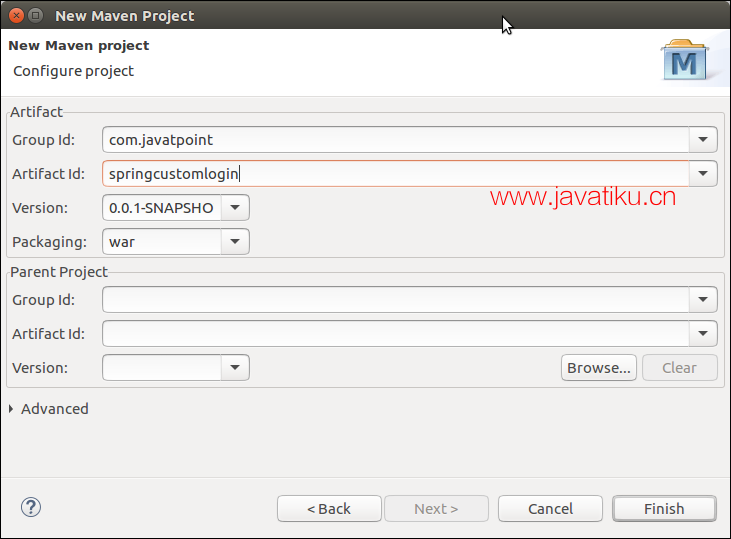

创建一个Maven项目，并提供以下详细信息。

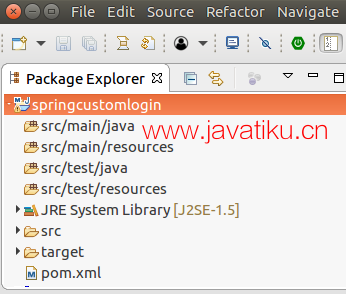

创建完毕后，将会创建以下项目结构。


安全配置

配置项目以应用Spring Security。它需要以下四个文件。创建一个名为cn.javatiku的包，并将这些文件放入其中。

// AppConfig.java

package cn.javatiku;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.EnableWebMvc;
import org.springframework.web.servlet.view.InternalResourceViewResolver;
import org.springframework.web.servlet.view.JstlView;
@EnableWebMvc
@Configuration
@ComponentScan({ "cn.javatiku.controller.*" })
public class AppConfig {
    @Bean
    public InternalResourceViewResolver viewResolver() {
        InternalResourceViewResolver viewResolver
                          = new InternalResourceViewResolver();
        viewResolver.setViewClass(JstlView.class);
        viewResolver.setPrefix("/WEB-INF/views/");
        viewResolver.setSuffix(".jsp");
        return viewResolver;
    }
}

// MvcWebApplicationInitializer.java

package cn.javatiku;

import org.springframework.web.servlet.support.AbstractAnnotationConfigDispatcherServletInitializer;
public class MvcWebApplicationInitializer extends
        AbstractAnnotationConfigDispatcherServletInitializer {
    @Override
    protected Class<?>[] getRootConfigClasses() {
        return new Class[] { WebSecurityConfig.class };
    }
    @Override
    protected Class<?>[] getServletConfigClasses() {
        // TODO Auto-generated method stub
        return null;
    }
    @Override
    protected String[] getServletMappings() {
        return new String[] { "/" };
    }
}

// SecurityWebApplicationInitializer.java

package cn.javatiku;
  import org.springframework.security.web.context.*;

  public class SecurityWebApplicationInitializer
      extends AbstractSecurityWebApplicationInitializer {

  }

// WebSecurityConfig.java

package cn.javatiku;

import org.springframework.context.annotation.*;
//import org.springframework.security.config.annotation.authentication.builders.*;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.*;
import org.springframework.security.core.userdetails.*;
//import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.provisioning.InMemoryUserDetailsManager;
import org.springframework.security.web.util.matcher.AntPathRequestMatcher;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;
@EnableWebSecurity
@ComponentScan("cn.javatiku")
public class WebSecurityConfig extends WebSecurityConfigurerAdapter {

@Bean
public UserDetailsService userDetailsService() {
    InMemoryUserDetailsManager manager = new InMemoryUserDetailsManager();
    manager.createUser(User.withDefaultPasswordEncoder()
    .username("irfan").password("khan123").roles("ADMIN").build());
    return manager;
}

@Override
protected void configure(HttpSecurity http) throws Exception {

      http.authorizeRequests().
      antMatchers("/index", "/user","/").permitAll()
      .antMatchers("/admin").authenticated()
      .and()
      .formLogin()
      .loginPage("/login")
      .and()
      .logout()
      .logoutRequestMatcher(new AntPathRequestMatcher("/logout"));
}
}

在上述配置的configure方法中，我们使用了.formLogin().loginPage("/login")来指定我们自定义的登录页面。

视图

首先，我们创建了自己的登录页面。根据Spring官方文档的建议，登录页面应该如下所示。

// login.jsp

<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<c:url value="/login" var="loginUrl"/>
<form action="${loginUrl}" method="post">
    <c:if test="${param.error != null}">
        <p>
            Invalid username and password.
        </p>
    </c:if>
    <c:if test="${param.logout != null}">
        <p>
            You have been logged out.
        </p>
    </c:if>
    <p>
        <label for="username">Username</label>
        <input type="text" id="username" name="username"/>
    </p>
    <p>
        <label for="password">Password</label>
        <input type="password" id="password" name="password"/>
    </p>
    <input type="hidden"
        name="${_csrf.parameterName}"
        value="${_csrf.token}"/>
    <button type="submit" class="btn">Log in</button>
</form>

// index.jsp

<html>
<head>
<title>Home Page</title>
</head>
<body>
<h3> Welcome to javatiku! <br> </h3>
<a href="admin">Login here</a>
</body>
</html>

// admin.jsp

<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Home Page</title>
</head>
<body>
Login Successful!
<a href="logout">logout</a>
</body>
</html>

控制器

创建一个名为HomeController的控制器，放在cn.javatiku.controller包中。

// HomeController.java

package cn.javatiku.controller;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
@Controller
public class HomeController {

    @RequestMapping(value="/", method=RequestMethod.GET)
    public String index() {

        return "index";
    }
    @RequestMapping(value="/login", method=RequestMethod.GET)
    public String login() {

        return "login";
    }
    @RequestMapping(value="/admin", method=RequestMethod.GET)
    public String admin() {

        return "admin";
    }
}

项目依赖项

// pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>cn.javatiku</groupId>
  <artifactId>springcustomlogin</artifactId>
  <version>0.0.1-SNAPSHOT</version>
  <packaging>war</packaging>
  <properties>
    <maven.compiler.target>1.8</maven.compiler.target>
    <maven.compiler.source>1.8</maven.compiler.source>
</properties>
<dependencies>
  <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>5.0.2.RELEASE</version>
        </dependency>
        <dependency>
        <groupId>org.springframework.security</groupId>
        <artifactId>spring-security-web</artifactId>
        <version>5.0.0.RELEASE</version>
    </dependency>
<dependency>
    <groupId>org.springframework.security</groupId>
    <artifactId>spring-security-core</artifactId>
    <version>5.0.4.RELEASE</version>
</dependency>
    <!-- https://mvnrepository.com/artifact/org.springframework.security/spring-security-config -->
<dependency>
    <groupId>org.springframework.security</groupId>
    <artifactId>spring-security-config</artifactId>
    <version>5.0.4.RELEASE</version>
</dependency>


        <!-- https://mvnrepository.com/artifact/javax.servlet/javax.servlet-api -->
<dependency>
    <groupId>javax.servlet</groupId>
    <artifactId>javax.servlet-api</artifactId>
    <version>3.1.0</version>
    <scope>provided</scope>
</dependency>
<dependency>
    <groupId>javax.servlet</groupId>
    <artifactId>jstl</artifactId>
    <version>1.2</version>
</dependency>
</dependencies>
  <build>
    <plugins>
        <plugin>
            <groupId>org.apache.maven.plugins</groupId>
            <artifactId>maven-war-plugin</artifactId>
            <version>2.6</version>
            <configuration>
                <failOnMissingWebXml>false</failOnMissingWebXml>
            </configuration>
        </plugin>
    </plugins>
</build>
</project>

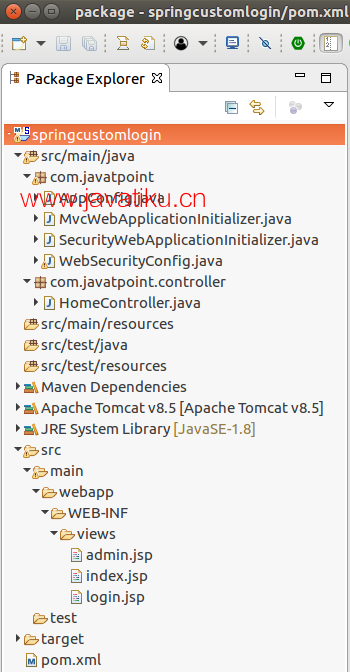

项目结构

项目结构如下：


启动服务器

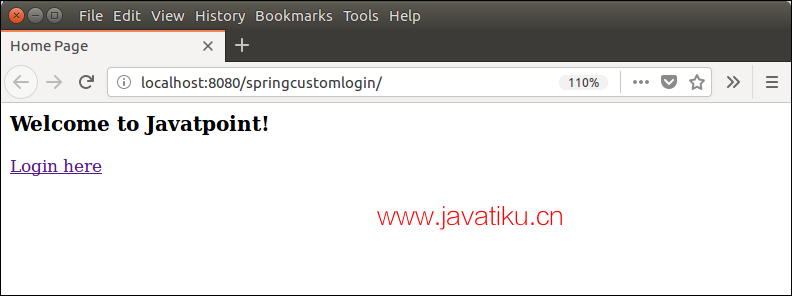

输出：

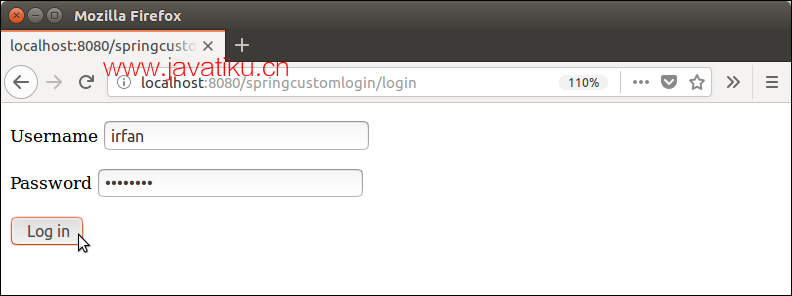

现在，通过提供用户凭据进行登录。


看起来，一切正常。现在，我们可以根据需要更改它的样式和外观。
