Spring Security基于表单的认证

基于表单的认证是一种通过登录表单进行用户认证的方式。这个表单是由Spring Security框架内置并提供的。

HttpSecurity类提供了一个formLogin()方法,负责渲染登录表单并验证用户凭据。

在本教程中,我们将创建一个实现基于表单认证的示例。让我们开始这个例子。

首先,创建一个Maven项目,提供项目详细信息。

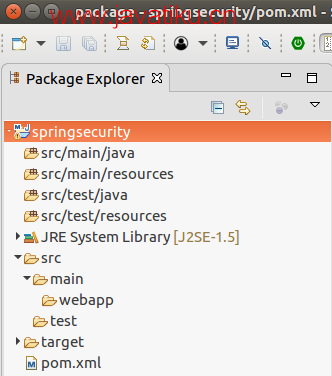

项目初始状态如下:


Spring Security配置

在应用程序中配置Spring Security,使用以下Java文件。创建一个名为com.javatpoint的包,并将所有文件放入其中。

// AppConfig.java

package com.javatpoint;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.EnableWebMvc;
import org.springframework.web.servlet.view.InternalResourceViewResolver;
import org.springframework.web.servlet.view.JstlView;
@EnableWebMvc
@Configuration
@ComponentScan({ "com.javatpoint.controller.*" })
public class AppConfig {
    @Bean
    public InternalResourceViewResolver viewResolver() {
        InternalResourceViewResolver viewResolver
                          = new InternalResourceViewResolver();
        //viewResolver.setViewClass(JstlView.class);
        viewResolver.setPrefix("/WEB-INF/views/");
        viewResolver.setSuffix(".jsp");
        return viewResolver;
    }
}

// MvcWebApplicationInitializer.java

package com.javatpoint;
import org.springframework.web.servlet.support.AbstractAnnotationConfigDispatcherServletInitializer;
public class MvcWebApplicationInitializer extends
        AbstractAnnotationConfigDispatcherServletInitializer {
    @Override
    protected Class<?>[] getRootConfigClasses() {
        return new Class[] { WebSecurityConfig.class };
    }
    @Override
    protected Class<?>[] getServletConfigClasses() {
        // TODO Auto-generated method stub
        return null;
    }
    @Override
    protected String[] getServletMappings() {
        return new String[] { "/" };
    }
}

// SecurityWebApplicationInitializer.java

package com.javatpoint;
import org.springframework.security.web.context.*;
public class SecurityWebApplicationInitializer extends AbstractSecurityWebApplicationInitializer {
    }

// WebSecurityConfig.java

package com.javatpoint;
import org.springframework.context.annotation.*;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.*;
import org.springframework.security.core.userdetails.*;
import org.springframework.security.provisioning.InMemoryUserDetailsManager;
import org.springframework.security.web.util.matcher.AntPathRequestMatcher;
@EnableWebSecurity
@ComponentScan("com.javatpoint")
public class WebSecurityConfig extends WebSecurityConfigurerAdapter {
  @Bean
  public UserDetailsService userDetailsService() {
      InMemoryUserDetailsManager manager = new InMemoryUserDetailsManager();
      manager.createUser(User.withDefaultPasswordEncoder()
      .username("admin").password("admin123").roles("ADMIN").build());
      return manager;
  }
  @Override
  protected void configure(HttpSecurity http) throws Exception {
      http.authorizeRequests().
      antMatchers("/index", "/user","/").permitAll()
      .antMatchers("/admin").authenticated()
      .and()
      .formLogin() // It renders a login form
      .and()
      .logout()
      .logoutRequestMatcher(new AntPathRequestMatcher("/logout"));
  }
}

控制器

创建一个名为HomeController的控制器,并将其放在com.javatpoint.controller包中。它包含以下代码。

// HomeController.java

package com.javatpoint.controller;
    import org.springframework.stereotype.Controller;
    import org.springframework.web.bind.annotation.RequestMapping;
    import org.springframework.web.bind.annotation.RequestMethod;

    @Controller
    public class HomeController {

        @RequestMapping(value="/", method=RequestMethod.GET)
        public String index() {

            return "index";
        }
        @RequestMapping(value="/admin", method=RequestMethod.GET)
        public String admin() {

            return "admin";
        }
    }

视图

此项目包含以下两个视图(JSP页面)。将它们放入WEB-INF/views文件夹中。

// index.jsp

<html>
<head>
<title>Index Page</title>
</head>
<body>
Welcome to Javatpoint! <br> <br>
<a href="admin">Admin login</a>
</body>
</html>

// admin.jsp

<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Home Page</title>
</head>
<body>
<span style="color: green;">login successful!</span>
<a href="logout">Logout</a>
<hr>
    <h3>Welcome Admin</h3>
</body>
</html>

项目依赖

// pom.xml

pom.xml中添加以下依赖项。

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>com.javatpoint</groupId>
  <artifactId>springsecurity</artifactId>
  <version>0.0.1-SNAPSHOT</version>
  <packaging>war</packaging>
  <properties>
    <maven.compiler.target>1.8</maven.compiler.target>
    <maven.compiler.source>1.8</maven.compiler.source>
</properties>
<dependencies>
  <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>5.0.2.RELEASE</version>
        </dependency>
        <dependency>
        <groupId>org.springframework.security</groupId>
        <artifactId>spring-security-web</artifactId>
        <version>5.0.0.RELEASE</version>
    </dependency>
<dependency>
    <groupId>org.springframework.security</groupId>
    <artifactId>spring-security-core</artifactId>
    <version>5.0.4.RELEASE</version>
</dependency>
    <!-- https://mvnrepository.com/artifact/org.springframework.security/spring-security-config -->
<dependency>
    <groupId>org.springframework.security</groupId>
    <artifactId>spring-security-config</artifactId>
    <version>5.0.4.RELEASE</version>
</dependency>


        <!-- https://mvnrepository.com/artifact/javax.servlet/javax.servlet-api -->
<dependency>
    <groupId>javax.servlet</groupId>
    <artifactId>javax.servlet-api</artifactId>
    <version>3.1.0</version>
    <scope>provided</scope>
</dependency>
<dependency>
    <groupId>javax.servlet</groupId>
    <artifactId>jstl</artifactId>
    <version>1.2</version>
</dependency>
</dependencies>
  <build>
    <plugins>
        <plugin>
            <groupId>org.apache.maven.plugins</groupId>
            <artifactId>maven-war-plugin</artifactId>
            <version>2.6</version>
            <configuration>
                <failOnMissingWebXml>false</failOnMissingWebXml>
            </configuration>
        </plugin>
    </plugins>
</build>
</project>

项目结构

在添加了所有这些文件后,项目结构如下:


运行服务器

在服务器上运行应用程序,查看它在浏览器中的输出。

输出:

点击链接,将呈现一个登录表单,用于基于表单的认证。


在验证凭据后,它会对用户进行身份验证,并渲染到管理员页面。
