Spring MVC 表单单选按钮

Spring MVC 表单单选按钮允许我们一次只选择一个选项。此标签呈现类型为单选按钮的 HTML 输入标签。

语法

<form:radiobutton path="abc" value="xyz"/>

除了单选按钮标签之外，Spring MVC 表单标签库还包含 radiobuttons 标签。此标签呈现多个类型为单选按钮的 HTML 输入标签。

<form:radiobuttons path="abc" items="${xyz}"/>

Spring MVC 表单单选按钮示例

1. 在 pom.xml 中添加依赖项

          <!-- https://mvnrepository.com/artifact/org.springframework/spring-webmvc -->
<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-webmvc</artifactId>
    <version>5.1.1.RELEASE</version>
</dependency>

    <!-- https://mvnrepository.com/artifact/javax.servlet/javax.servlet-api -->
<dependency>
    <groupId>javax.servlet</groupId>
    <artifactId>servlet-api</artifactId>
    <version>3.0-alpha-1</version>
</dependency>

    <!-- https://mvnrepository.com/artifact/javax.servlet/jstl -->
<dependency>
    <groupId>javax.servlet</groupId>
    <artifactId>jstl</artifactId>
    <version>1.2</version>
</dependency>
<!-- https://mvnrepository.com/artifact/org.apache.tomcat/tomcat-jasper -->
<dependency>
    <groupId>org.apache.tomcat</groupId>
    <artifactId>tomcat-jasper</artifactId>
    <version>9.0.12</version>
</dependency>

2. 创建 Bean 类

Reservation.java

package cn.javatiku;

public class Reservation {

    private String firstName;
    private String lastName;
    private String Gender;

    public Reservation()
    {
    }
    public String getFirstName() {
        return firstName;
    }
    public void setFirstName(String firstName) {
        this.firstName = firstName;
    }
    public String getLastName() {
        return lastName;
    }
    public void setLastName(String lastName) {
        this.lastName = lastName;
    }
    public String getGender() {
        return Gender;
    }
    public void setGender(String gender) {
        Gender = gender;
    }
}

3. 创建控制器类

ReservationController.java

package cn.javatiku;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.ModelAttribute;
import org.springframework.web.bind.annotation.RequestMapping;

@RequestMapping("/reservation")
@Controller
public class ReservationController {
    @RequestMapping("/bookingForm")
public String bookingForm(Model model)
{
      //create a reservation object
    Reservation res=new Reservation();
      //provide reservation object to the model
    model.addAttribute("reservation", res);
    return "reservation-page";
}
@RequestMapping("/submitForm")
public String submitForm(@ModelAttribute("reservation") Reservation res)
{
    return "confirmation-form";
}
}

4. 在 web.xml 文件中提供控制器的入口

web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd" id="WebApp_ID" version="3.0">
  <display-name>SpringMVC</display-name>
   <servlet>
    <servlet-name>spring</servlet-name>
    <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
    <load-on-startup>1</load-on-startup>
</servlet>
<servlet-mapping>
    <servlet-name>spring</servlet-name>
    <url-pattern>/</url-pattern>
</servlet-mapping>
</web-app>

5. 在 xml 文件中定义 Bean

spring-servlet.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:context="http://www.springframework.org/schema/context"
    xmlns:mvc="http://www.springframework.org/schema/mvc"
    xsi:schemaLocation="
        http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context.xsd
        http://www.springframework.org/schema/mvc
        http://www.springframework.org/schema/mvc/spring-mvc.xsd">
    <!-- Provide support for component scanning -->
    <context:component-scan base-package="cn.javatiku" />
    <!--Provide support for conversion, formatting and validation -->
    <mvc:annotation-driven/>
    <!-- Define Spring MVC view resolver -->
     <bean id="viewResolver" class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/WEB-INF/jsp/"></property>
        <property name="suffix" value=".jsp"></property>
     </bean>
</beans>

6. 创建所需页面

index.jsp

<!DOCTYPE html>
<html>
<head>
    <title>Railway Registration Form</title>
</head>
<body>
<a href="reservation/bookingForm">Click here for reservation.</a>
</body>
</html>

reservation-page.jsp

<%@ taglib prefix="form" uri="http://www.springframework.org/tags/form" %>
<!DOCTYPE html>
<html>
<head>
    <title>Reservation Form</title>
</head>
<h3>Railway Reservation Form</h3>
<body>
    <form:form action="submitForm" modelAttribute="reservation">
        First name: <form:input path="firstName" />
        <br><br>
        Last name: <form:input path="lastName" />
        <br><br>
        Gender:
        Male <form:radiobutton path="Gender" value="Male"/>
        Female <form:radiobutton path="Gender" value="Female"/>
        <br><br>
        <input type="submit" value="Submit" />
    </form:form>
</body>
</html>

confirmation-page.jsp

<!DOCTYPE html>
<html>
<body>
<p>Your reservation is confirmed successfully. Please, re-check the details.</p>
First Name : ${reservation.firstName} <br>
Last Name : ${reservation.lastName} <br>
Gender: ${reservation.gender}
</body>
</html>

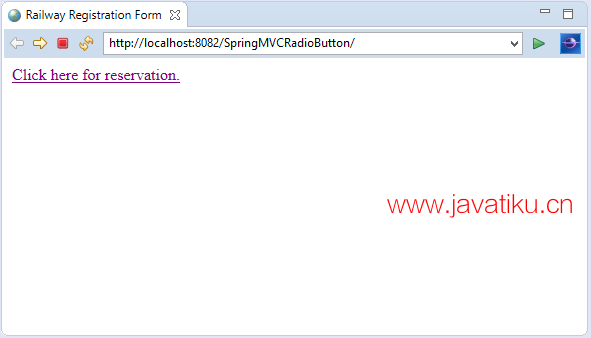

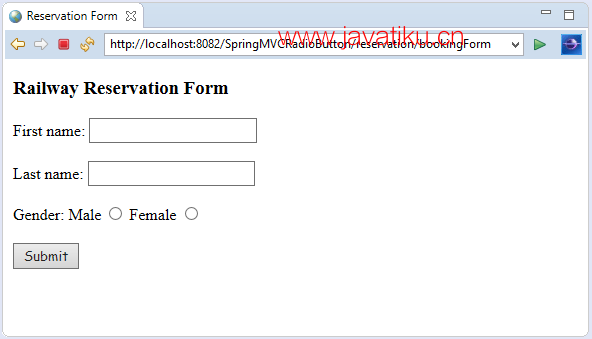

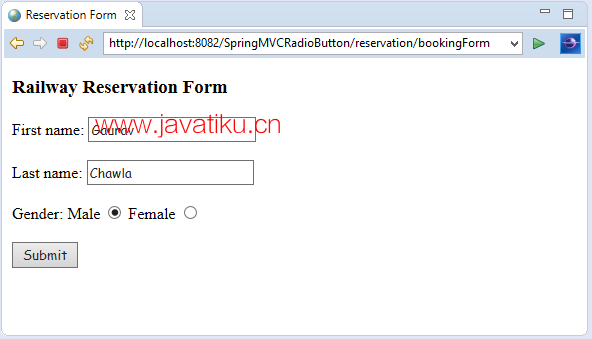

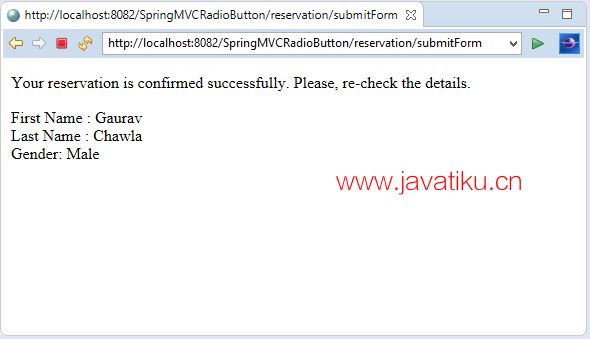

输出：

（这里显示了表单和确认页面的内容）

以上就是使用 Spring MVC 表单单选按钮创建铁路预订表单的示例。
