Spring AOP示例

这里给出了Spring1.2旧版AOP（基于DTD的实现）的示例。

尽管在Spring 3中支持这种方式，但建议使用我们将在下一页学习的带有AspectJ的Spring AOP。

Spring1.2旧版AOP支持4种类型的通知：

1.Before Advice：在实际方法调用之前执行。
2.After Advice：在实际方法调用之后执行。如果方法返回一个值，则在返回值后执行。
3.Around Advice：在实际方法调用之前和之后执行。
4.Throws Advice：如果实际方法抛出异常，则执行。

要了解Spring AOP的基本概念，请访问前一页。

理解通知接口的层次结构

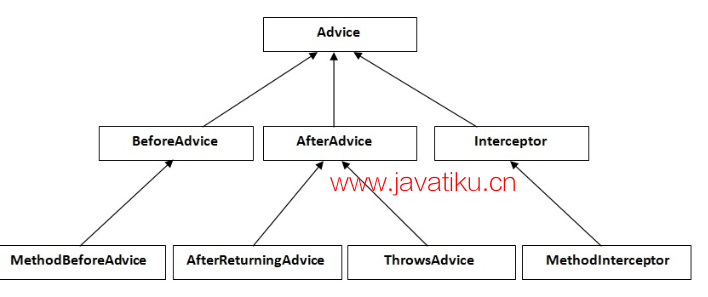

让我们通过下面的图表来理解通知接口的层次结构：

所有接口都属于AOP。

MethodBeforeAdvice接口扩展BeforeAdvice接口。

AfterReturningAdvice接口扩展AfterAdvice接口。

ThrowsAdvice接口扩展AfterAdvice接口。

MethodInterceptor接口扩展Interceptor接口。在Around Advice中使用。

1）MethodBeforeAdvice示例

创建一个包含实际业务逻辑的类。

文件：A.java

package cn.javatiku;
public class A {
public void m(){System.out.println("actual business logic");}
}

现在，创建一个实现MethodBeforeAdvice接口的Advisor类。

文件：BeforeAdvisor.java

package cn.javatiku;
import java.lang.reflect.Method;
import org.springframework.aop.MethodBeforeAdvice;
public class BeforeAdvisor implements MethodBeforeAdvice{
    @Override
    public void before(Method method, Object[] args, Object target)throws Throwable {
        System.out.println("additional concern before actual logic");
    }
}

在xml文件中创建3个bean，一个用于A类，第二个用于Advisor类，第三个用于ProxyFactoryBean类。

文件：applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans
    xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:p="http://www.springframework.org/schema/p"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-3.0.xsd">

<bean id="obj" class="cn.javatiku.A"></bean>
<bean id="ba" class="cn.javatiku.BeforeAdvisor"></bean>

<bean id="proxy" class="org.springframework.aop.framework.ProxyFactoryBean">
<property name="target" ref="obj"></property>
<property name="interceptorNames">
<list>
<value>ba</value>
</list>
</property>
</bean>

</beans>

了解ProxyFactoryBean类：

ProxyFactoryBean类由Spring框架提供。它包含两个属性：target和interceptorNames。A类的实例将被视为目标对象，Advisor类的实例将被视为拦截器。您需要将Advisor对象作为列表对象传递，就像上面的xml文件中所示。

ProxyFactoryBean类的代码大致如下：

public class ProxyFactoryBean{
private Object target;
private List interceptorNames;
//getters and setters
}

现在，让我们调用实际的方法。

文件：Test.java

package cn.javatiku;
import org.springframework.beans.factory.BeanFactory;
import org.springframework.beans.factory.xml.XmlBeanFactory;
import org.springframework.core.io.ClassPathResource;
import org.springframework.core.io.Resource;
public class Test {
public static void main(String[] args) {
    Resource r=new ClassPathResource("applicationContext.xml");
    BeanFactory factory=new XmlBeanFactory(r);

    A a=factory.getBean("proxy",A.class);
    a.m();
}
}

输出结果:

additional concern before actual logic
actual business logic

在MethodBeforeAdvice中打印附加信息
我们可以打印更多的信息，比如方法名称，方法参数，目标对象，目标对象的类名，代理类等。

您只需要更改BeforeAdvisor.java和Test.java这两个类。

文件：BeforeAdvisor.java

package cn.javatiku;
import java.lang.reflect.Method;
import org.springframework.aop.MethodBeforeAdvice;

public class BeforeAdvisor implements MethodBeforeAdvice{
    @Override
    public void before(Method method, Object[] args, Object target)throws Throwable {
        System.out.println("additional concern before actual logic");
        System.out.println("method info:"+method.getName()+" "+method.getModifiers());
        System.out.println("argument info:");
        for(Object arg:args)
            System.out.println(arg);
        System.out.println("target Object:"+target);
        System.out.println("target object class name: "+target.getClass().getName());
    }
}

文件：Test.java

package cn.javatiku;
import org.springframework.beans.factory.BeanFactory;
import org.springframework.beans.factory.xml.XmlBeanFactory;
import org.springframework.core.io.ClassPathResource;
import org.springframework.core.io.Resource;
public class Test {
public static void main(String[] args) {
    Resource r=new ClassPathResource("applicationContext.xml");
    BeanFactory factory=new XmlBeanFactory(r);

    A a=factory.getBean("proxy",A.class);
        System.out.println("proxy class name: "+a.getClass().getName());
    a.m();
}
}

输出结果：

proxy class name: cn.javatiku.A$$EnhancerByCGLIB$$409872b1
additional concern before actual logic
method info:m 1
argument info:
target Object:cn.javatiku.A@11dba45
target object class name: cn.javatiku.A
actual business logic

AfterReturningAdvice示例

创建一个包含实际业务逻辑的类。

文件：A.java

与上一个示例中的A类相同。

现在，创建一个实现AfterReturningAdvice接口的Advisor类。

文件：AfterAdvisor.java

package cn.javatiku;
import java.lang.reflect.Method;
import org.springframework.aop.AfterReturningAdvice;
public class AfterAdvisor implements AfterReturningAdvice{
    @Override
    public void afterReturning(Object returnValue, Method method,
         Object[] args, Object target) throws Throwable {

        System.out.println("additional concern after returning advice");
    }

}

创建与之前示例中的xml文件相同的xml文件，在此处只需要更改advisor类。

文件：applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans
    xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:p="http://www.springframework.org/schema/p"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-3.0.xsd">

<bean id="obj" class="cn.javatiku.A"></bean>
<bean id="ba" class="cn.javatiku.AfterAdvisor"></bean>

<bean id="proxy" class="org.springframework.aop.framework.ProxyFactoryBean">
<property name="target" ref="obj"></property>
<property name="interceptorNames">
<list>
<value>ba</value>
</list>
</property>
</bean>

</beans>

文件：Test.java

与之前的示例相同。

输出结果：

actual business logic
additional concern after returning advice

MethodInterceptor（AroundAdvice）示例

创建一个包含实际业务逻辑的类。

文件：A.java

与之前的示例相同。

现在，创建一个实现MethodInterceptor接口的advisor类。

文件：AroundAdvisor.java

package cn.javatiku;
import org.aopalliance.intercept.MethodInterceptor;
import org.aopalliance.intercept.MethodInvocation;
public class AroundAdvisor implements MethodInterceptor{

    @Override
    public Object invoke(MethodInvocation mi) throws Throwable {
        Object obj;
        System.out.println("additional concern before actual logic");
        obj=mi.proceed();
        System.out.println("additional concern after actual logic");
        return obj;
    }

}

创建与之前示例中相同的xml文件，在此处只需更改advisor类。

文件：applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans
    xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:p="http://www.springframework.org/schema/p"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-3.0.xsd">

<bean id="obj" class="cn.javatiku.A"></bean>
<bean id="ba" class="cn.javatiku.AroundAdvisor"></bean>

<bean id="proxy" class="org.springframework.aop.framework.ProxyFactoryBean">
<property name="target" ref="obj"></property>
<property name="interceptorNames">
<list>
<value>ba</value>
</list>
</property>
</bean>

</beans>

文件：Test.java

与之前的示例相同。

输出结果：

additional concern before actual logic
actual business logic
additional concern after actual logic

文件：Validator.java

package cn.javatiku;
public class Validator {
    public void validate(int age)throws Exception{
        if(age<18){
            throw new ArithmeticException("Not Valid Age");
        }
        else{
            System.out.println("vote confirmed");
        }
    }
}

文件：ThrowsAdvisor.java

package cn.javatiku;
import org.springframework.aop.ThrowsAdvice;
public class ThrowsAdvisor implements ThrowsAdvice{
    public void afterThrowing(Exception ex){
        System.out.println("additional concern if exception occurs");
    }
}

文件：applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans
    xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:p="http://www.springframework.org/schema/p"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-3.0.xsd">

<bean id="obj" class="cn.javatiku.Validator"></bean>
<bean id="ba" class="cn.javatiku.ThrowsAdvisor"></bean>

<bean id="proxy" class="org.springframework.aop.framework.ProxyFactoryBean">
<property name="target" ref="obj"></property>
<property name="interceptorNames">
<list>
<value>ba</value>
</list>
</property>
</bean>

</beans>

文件: Test.java

package cn.javatiku;

import org.springframework.beans.factory.BeanFactory;
import org.springframework.beans.factory.xml.XmlBeanFactory;
import org.springframework.core.io.ClassPathResource;
import org.springframework.core.io.Resource;

public class Test {
public static void main(String[] args) {
    Resource r=new ClassPathResource("applicationContext.xml");
    BeanFactory factory=new XmlBeanFactory(r);

    Validator v=factory.getBean("proxy",Validator.class);
    try{
    v.validate(12);
    }catch(Exception e){e.printStackTrace();}
}
}

输出：

java.lang.ArithmeticException: Not Valid Age

additional concern if exception occurs

    at cn.javatiku.Validator.validate(Validator.java:7)
    at cn.javatiku.Validator$$FastClassByCGLIB$$562915cf.invoke(<generated>)
    at net.sf.cglib.proxy.MethodProxy.invoke(MethodProxy.java:191)
    at org.springframework.aop.framework.Cglib2AopProxy$CglibMethodInvocation.invoke
Joinpoint(Cglib2AopProxy.java:692)
    at org.springframework.aop.framework.ReflectiveMethodInvocation.
proceed(ReflectiveMethodInvocation.java:150)
    at org.springframework.aop.framework.adapter.ThrowsAdviceInterceptor.
invoke(ThrowsAdviceInterceptor.java:124)
    at org.springframework.aop.framework.ReflectiveMethodInvocation.
proceed(ReflectiveMethodInvocation.java:172)
    at org.springframework.aop.framework.Cglib2AopProxy$DynamicAdvisedInterceptor.
intercept(Cglib2AopProxy.java:625)
    at cn.javatiku.Validator$$EnhancerByCGLIB$$4230ed28.validate(<generated>)
    at cn.javatiku.Test.main(Test.java:15)
